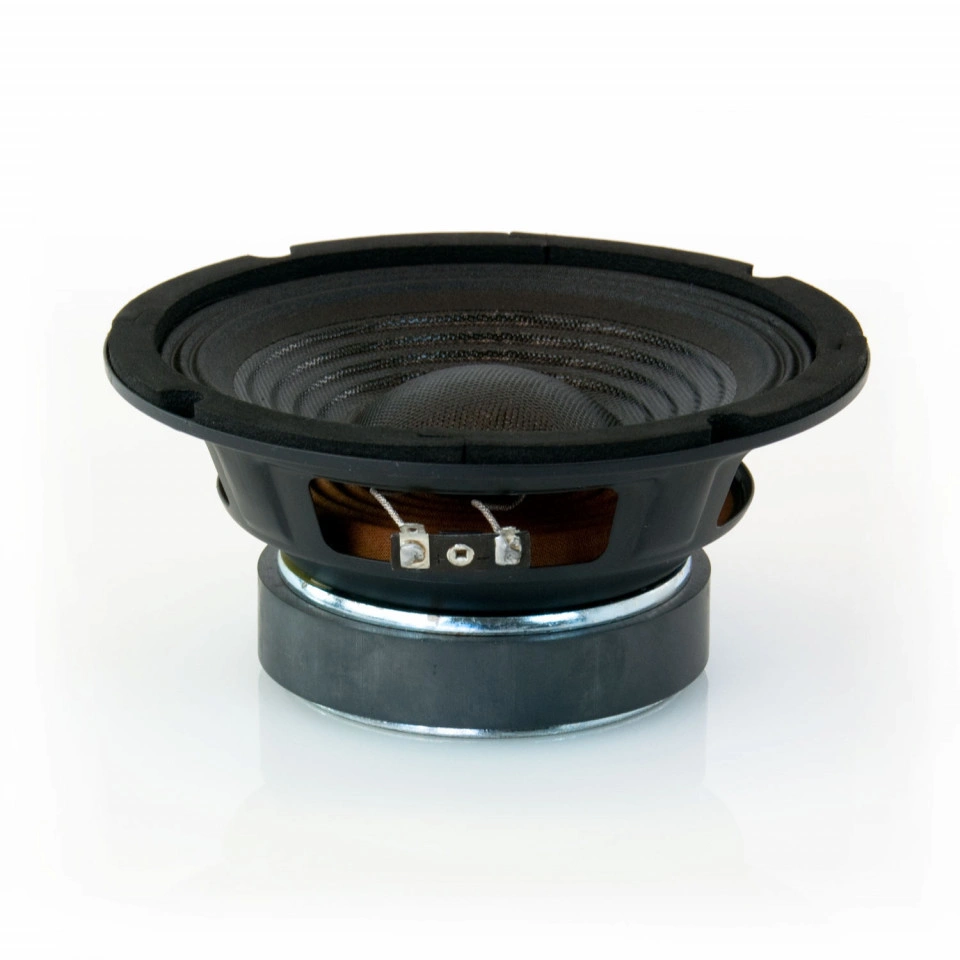

Descriere
- Con de celuloza - suspensie rigida
- Putere RMS: 60 wați
- Impedanta: 8 Ohm
- Sensibilitate: 90 dB
- Raspuns in frecventa: 60-6000Hz
- Magnet: 20 oz
- Bobina mobila: 30 mm
MOUNTING INFORMATION
Overall Diameter 167 mm
Bolt Circle Diameter 158 mm
Baffle cutout Diameter 146 mm
Depth 78 mm
Mounting Depth 71 mm
Net Weight 1,1 Kg
SPECIFICATIONS
Nominal Impedance 8 Ohm
Power 60 W
Sensitivity (1W/1m) 90 dB
Frequency Range 60-6000 Hz
Voice Coil Diameter 30 mm
Magnet Ferrite
Magnet weight 20 oz
Basket Material Steel
THIELE AND SMALL PARAMETERS
Qes 2,289
Qms 4,219
Qts 1,484
Vas 38,76 l
Sd 136,78 cm²
Mms 14 gr
Bl 5,457 Tm
Cms 1.45897 µm/N
